Fabric-CICD in Practice - Groundwork

Setting up Fabric CI/CD, laying the groundwork of branching strategy, workspaces, service principals, connections, pipelines and approval gates before a first test deployment

As a first for me I am going to try writing a series. Starting from an empty workspace, over three posts, we will build up to a multi-workspace solution that deploys into empty environments with nobody clicking anything. It will be opinionated, and the first opinion is that fabric-cicd is the only sensible basis for a complete CI/CD solution in Fabric. This first post is the groundwork the series will build on: the branching strategy and what each workspace is for, the sample repo, the service principals, the pipelines that promote code to higher environments, and the approval gate that protects prod, ending with a deployment into empty test and prod workspaces.

I've written about fabric-cicd a few times already; the series links those posts and doesn't re-explain them.

Previous Posts

Fabric-cicd, Kicking the tyres (May 2025)
One Pipeline to Rule Them All (June 2025)
Fabric-CICD Updates - Semantic Models, Parameters and Config (February 2026)
Fabric-CICD - It's Official (February 2026)
CICD for Fabric Data Teams (May 2026)
Lost Connections (August 2026)

Series - Fabric-CICD in Practice

Groundwork
Feature to Prod
Two Workspaces, One Deploy

fabric-cicd v1.3.0

This series is pinned to fabric-cicd 1.3.0 and Fabric CLI v1.7.0.

Terminology

The series will use Azure DevOps as the CI/CD platform. A few terms come up in every post, so here they are once.

Term	What it means here
Workspace	A Fabric workspace. One per environment per solution, named `<solution>-<env>`, so `foo-dev`
Repo	The Azure Repos git repository holding the solution: one folder per workspace under `fabric/`, plus the pipelines
Branch	`main`, `release/` or `feature/`. Each maps to a workspace; the Branching Strategy table says how
Connection	A Fabric connection to a data source, with its own owner and credential. Not part of any item definition
Azure Pipelines	The CI/CD runner in Azure DevOps. A pipeline is a YAML file in the repo made of stages, jobs and steps, triggered by a branch. Each job runs on an agent; this series uses Microsoft-hosted agents, a fresh Azure VM per job, discarded when it ends
Environment	An Azure DevOps object that a deployment job targets. Approvals and locks are attached to the environment, to guard deployment into it
Service connection	The Azure DevOps object that points at the identity a pipeline authenticates as (a service principal or managed identity) and says how. We will use workload identity federation, so there is no secret to store or rotate
Service principal (SPN)	The Entra identity the pipeline runs as. It needs a role on every workspace it deploys to and access to every connection the items use
Workload identity federation (WIF)	Azure DevOps issues a short-lived token for the service connection, the pipeline presents it to Entra, and Entra checks it against a federated credential on the app registration (issuer plus subject identifier, both generated by Azure DevOps) before issuing an access token for the SPN
Fabric CLI (`fab`)	Microsoft's command line for Fabric. `fab deploy` is a fabric-cicd config deployment, `fab api` is a raw REST call, `fab import` pushes one item definition, `fab auth login` is how the SPN signs in
fabric-cicd	Microsoft's Python library that publishes item definitions from a repo into a workspace
`config.yml`	fabric-cicd's deployment config: which folder to deploy, which workspace to deploy to per environment, which item types to deploy, and publish and unpublish rules
`parameter.yml`	fabric-cicd's rewrite rules, applied to definitions on the way into the workspace
Item definition	The files under an item's folder in git: the `.platform` file plus the item's own parts. What fabric-cicd publishes
Logical ID and object ID	The two kinds of identifier of a Fabric item. Logical IDs rebind across workspaces, object IDs don't. See Lost Connections

Sample Repo

The code for this post is the post-1 tag of EvaluationContext/fabric-cicd-example. Each post in the series ends on a tag you can clone and run.

Setting the Stage¶

Who Is Using Fabric-CICD?¶

I don't believe that many people are using fabric-cicd. Now, I can't directly prove this statement, but I can get a proxy for it. Every pipeline run that installs fabric-cicd counts as a download, so downloads measure how often the tooling runs, not how many people run it. The number of distinct people who have ever opened an issue on the repo is closer to a headcount, because it needs a human who hit a problem and cared enough to write it up. Figures are from late September 2026.

Repo	Issues	Distinct authors	Excluding maintainers	Raised one issue only	Stars
fabric-cicd	625	265	261	169	331
terraform-provider-fabric	301	131	127	97	128
fabric-cli	90	55	55	39	172

fabric-cicd was downloaded from PyPI about 264,000 times in the last month, and the Terraform provider shows 2.7 million registry downloads in total.

With 261 people who have raised an issue, most of whom raised exactly one, and 331 stars over nearly two years, it feels fair to say only a few hundred teams are actively using fabric-cicd.

The point of this series is to try and make fabric-cicd more accessible and easier to adopt for everyone.

Setting The Bar¶

This solution will have to pass the following bar:

Cold start: the solution must be able to deploy Fabric Items into completely empty workspaces from the repository alone
No clicks: the solution must not require any manual intervention outside of the repository, beyond the initial setup
Idempotent: the solution must produce the same result regardless of how many times it is applied

To limit the scope of this series, we will not tackle:

Environment setup: automated creation and configuration of workspaces, permissions, connections etc
Bootstrapping: running notebooks or pipelines to populate a lakehouse, a dacpac to set up the initial database schema, semantic model refreshes etc
Data ops: what data non-production environments hold, and how it gets there
Connection switching: pointing each environment at a different source system. One connection serves every environment in this series

Why fabric-cicd¶

Microsoft's recommended path is git integration for source control, deployment pipelines for promotion and variable libraries for the per-environment values. I don't like it, for two reasons, and Lost Connections has the detail on both.

Greenfield: none of the three can stand an environment up from the repo alone, because each needs the target item to exist before it can be pointed at.
Clicks: deployment rules, active value sets and branch-out are all UI steps someone has to remember, and I believe if you do something more than once you should automate it.

fabric-cicd rewrites item definitions during deployment and resolves ids against the workspace being deployed to, at publish time, so a first deploy into an empty workspace works. It isn't the whole answer, as Jacob Knightley described in a post last year; there are some limitations around multi-workspace deployments. But it is still the best deployment solution available.

Two native features survive. Auto-binding, where the binding matrix says it applies, because there's no reason to write a parameter.yml rule for something Fabric already does. And git integration, but only for feature workspaces and only in one direction: changes made in the workspace are committed to git, never the other way around.

That git connection is also why the series uses Azure DevOps rather than GitHub. Connecting a workspace to GitHub needs a Personal Access Token (PAT), which belongs to a person, expires, and takes the connection with it when they leave. That might be tolerable for short-lived feature workspaces, but connecting to Azure DevOps can authenticate as a service principal (SPN), so nothing in the chain depends on a personal account, and I'd rather not build on an exception.

Deploying With the Fabric CLI¶

fabric-cicd is a Python library, and most write-ups, including my earlier ones, call it from a Python script: build a FabricWorkspace, call publish_all_items(), pass a parameter file. In this series I'm not doing that. Since v0.1.26 fabric-cicd has had configuration-based deployment, which I covered in Fabric-CICD Updates, and the Fabric CLI ships it as fab deploy. The whole deployment is a login and one line:

Auth and Deploy

fab auth login -u "$servicePrincipalId" --federated-token "$idToken" --tenant "$tenantId"
fab deploy --config fabric/foo/config.yml --target_env dev

I like this for two reasons. Everything about the deployment, which workspace each environment is, which item types are in scope, what gets unpublished, lives in config.yml next to the items it deploys and is reviewed in the same pull request. Nobody has to read a script or open a variable group to find out which workspace prod is. And fab is one tool for the whole job: fab deploy publishes, and fab api calls any Fabric REST endpoint when something has to happen after the publish, like a semantic model refresh, without a hand-rolled HTTP call.

Hosted agents

fab encrypts its token cache with the operating system keyring, and a hosted build agent has none, so a login in one step is gone by the next. Run fab config set encryption_fallback_enabled true before fab auth login, on every agent, every run.

Branching Strategy¶

In this series I'm adopting Microsoft's Release Flow as is, because it's a simple, modified trunk-based strategy, and Azure DevOps is built around it. main is the trunk and is always deployable. Work happens on short-lived feature/* branches that merge to main by pull request. When a release is ready, a release/* branch is cut from main and never merges back. A hotfix lands on main first and is cherry-picked into the release branch.

%%{init: {
  'theme': 'base',
  'gitGraph': { 'showBranches': true, 'showCommitLabel': true, 'mainBranchName': 'main' },
  'themeVariables': {
    'git0': '#db2777', 'git1': '#f472b6', 'git2': '#f59e0b', 'git3': '#fb7185',
    'gitBranchLabel0': '#ffffff', 'gitBranchLabel1': '#4a044e', 'gitBranchLabel2': '#4a044e', 'gitBranchLabel3': '#4a044e',
    'gitInv0': '#4a044e', 'gitInv1': '#4a044e', 'gitInv2': '#4a044e', 'gitInv3': '#4a044e',
    'commitLabelColor': '#4a044e', 'commitLabelBackground': '#fce7f3', 'commitLabelFontSize': '12px'
  }
}}%%
gitGraph
    commit id: "initial"
    branch feature/sales-report
    checkout feature/sales-report
    commit id: "add report"
    commit id: "fix measure"
    checkout main
    merge feature/sales-report id: "PR merged: deploy dev"
    branch release/2026.10
    checkout release/2026.10
    commit id: "cut: deploy test, approve, prod" type: HIGHLIGHT
    checkout main
    branch feature/hotfix
    checkout feature/hotfix
    commit id: "hotfix"
    checkout main
    merge feature/hotfix id: "PR merged: deploy dev again"
    checkout release/2026.10
    cherry-pick id: "hotfix"
    checkout main
    commit id: "next feature"

Each branch maps to a workspace, and each workspace is there for a reason. The reason is what decides what gets deployed to it, by whom, and when; without it we'd just be following a paradigm.

Workspace	Branch	Why it exists	Deployed by	Git connected
`feature`	`feature/*`	A branch's sandbox, so a developer can change anything without touching anyone else's work. Disposable; torn down when the branch merges	Git sync	To the feature branch, commits out only
`dev`	`main`	Proves that what has merged to `main` works together. Nothing lands here except by pipeline, so if dev is broken, `main` is broken	fabric-cicd, on every merge	No
`test`	`release/*`	Proves the prod deployment will land. It gets the exact commit prod gets, and it's where user acceptance happens, which may mean prod-shaped data	fabric-cicd, on every push to the release branch	No
`prod`	`release/*`	The users' workspace. Nobody deploys here except the release pipeline, after an approval	fabric-cicd, after the approval	No

flowchart LR
    subgraph Git Branches
        F[feature/*]
        M[main]
        R[release/*]
    end
    subgraph Fabric Workspaces
        FW[feature]
        D[dev]
        T[test]
        P[prod]
    end
    F -- "provision, then git connect" --> FW
    FW -- "commit" --> F
    F -- "pull request" --> M
    M -- "fab deploy on merge" --> D
    M -- "cut release" --> R
    R -- "fab deploy" --> T
    R -- "fab deploy, after approval" --> P

I want a feature workspace to be provisioned by a pipeline when the branch is created, filled by a deployment to resolve item dependencies, then attach git integration, with a git sync from workspace branch, and torn down when the branch merges. The git integration sync is only applied one way, workspace branch: a developer commits from the workspace to the repo, and nothing is pulled from git into the workspace. Definitions edited in VS Code or by an agent go the other way, one item at a time, with fab import followed by a read-back, the pattern Microsoft's skills-for-fabric uses. One item, one call, one error that names the item, and no "try again" commits on the branch, just to facilitate the use of git sync.

Dev, test and prod are never git-connected. The pipeline is the only thing that publishes them, and there is nothing a git connection would add except a source control panel showing drift after every deploy, because parameter.yml rewrote ids on the way in.

Repo Structure¶

The repo will be structured as follows. A single workspace foo with five items: a lakehouse, a pipeline that copies a file into it from an external source and then runs a notebook, the notebook that writes the table, a Direct Lake semantic model on the lakehouse's SQL analytics endpoint, and a report. Azure pipelines are defined in .azure-pipelines/.

Repo Structure

├── 📁 .azure-pipelines
│    ├── 📄 variables.yml // (1)!
│    ├── 📄 deploy-main.yml // (2)!
│    ├── 📄 deploy-release.yml // (3)!
│    └── 📁 templates
│         ├── 📄 fab-setup-steps.yml // (4)!
│         └── 📄 fab-deploy-steps.yml // (5)!
├── 📁 fabric
│    └── 📁 foo // (6)!
│         ├── 📁 Sales.Lakehouse
│         ├── 📁 Load Sales.DataPipeline // (7)!
│         ├── 📁 Load Sales.Notebook // (8)!
│         ├── 📁 Sales.SemanticModel // (9)!
│         ├── 📁 Sales.Report // (10)!
│         ├── 📄 config.yml // (11)!
│         └── 📄 parameter.yml // (12)!
├── 📄 .gitignore
└── 📄 README.md

Service connection names - the only values to edit to run the pipelines

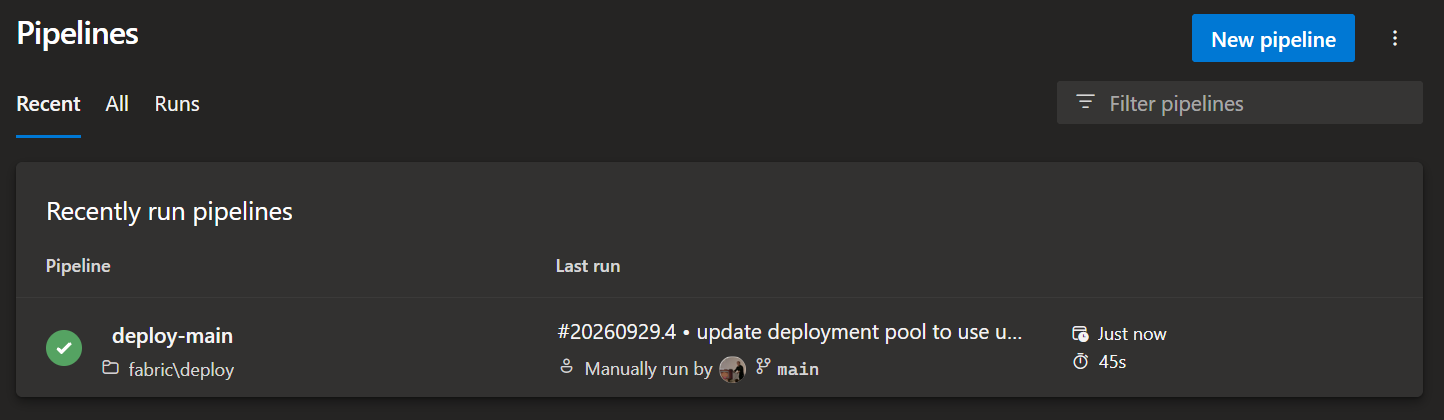

main to dev - every merge to main publishes the dev workspace

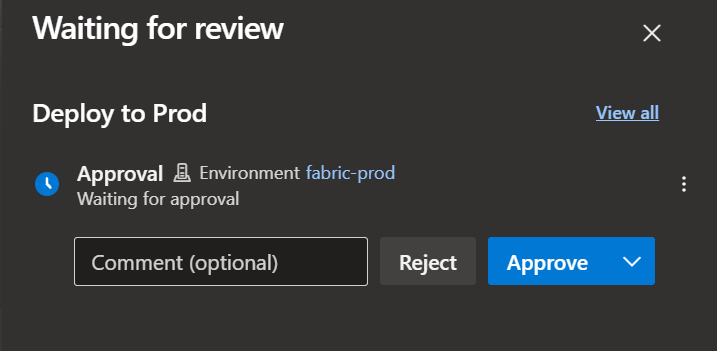

release/* to test to prod - test on every push, a manual approval, then prod
Setup steps - install the Fabric CLI and log in as the SPN with workload identity federation
Deploy steps - fab deploy one environment and publish the log as a build artifact
fabric-cicd repository_directory - one folder per workspace
Data pipeline - copies sales.csv from an external source over a connection, then runs the notebook. Holds the notebook's logical id, a zero workspace id and a connection id
Notebook - writes the sales table. Holds the default lakehouse's logical id and a zero workspace id
Semantic model - Direct Lake on the lakehouse's SQL analytics endpoint. Holds the endpoint host and id as literals
Report - bound to the model by path. Holds nothing that needs rewriting
fabric-cicd config.yml - environment to workspace name, item types in scope, publish and unpublish rules
fabric-cicd parameter.yml - rewrites applied on the way in. Holds only the two semantic model rules at the end of this post

No warehouse

I've left it out on purpose. A warehouse deploys as an empty shell, because its REST API has no definition operations, so the schema has to be built and published separately with SqlPackage. That's a post of its own, not this series.

Lets Get Started¶

I won't cover creating the Azure DevOps organisation and project; the free tier gives five users, unlimited private repos and one hosted parallel job (new organisations have to request it), which is enough to follow along.

Most of what follows is done once for the tenant and the Azure DevOps project, and then never again. Only the last few steps repeat for each solution. It's worth knowing which is which before starting, because the one-time work needs an admin and the per-solution work shouldn't.

Setup	Once per tenant or project	Once per solution (repo)
Service principals `sp-fabric-deploy-` and their service connections `sc-fabric-deploy-`
Security groups `sg-fabric-deploy-*`
Tenant settings scoped to those groups

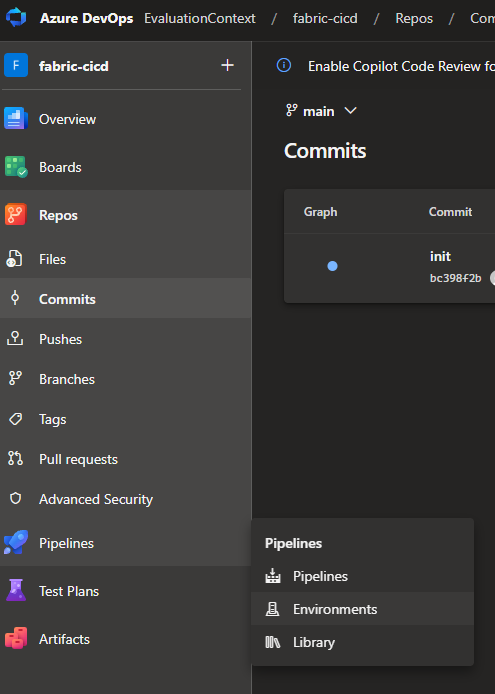

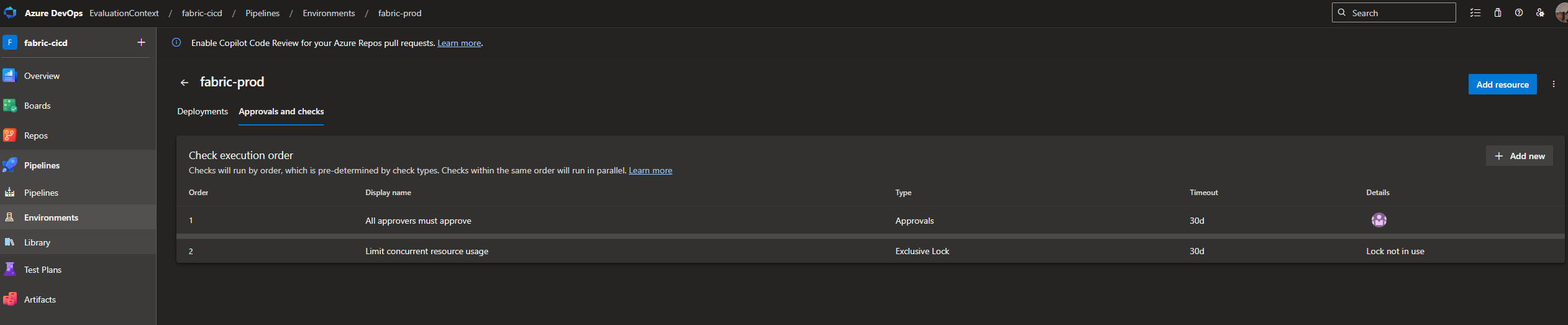

Azure DevOps environments `fabric-dev`, `fabric-test`, `fabric-prod` and the approval on prod
The repo, `config.yml`, `parameter.yml` and the two pipeline files
Workspaces `foo-dev`, `foo-test`, `foo-prod` on a capacity, with the SPNs as Contributor
Connections the items use, shared with both SPNs

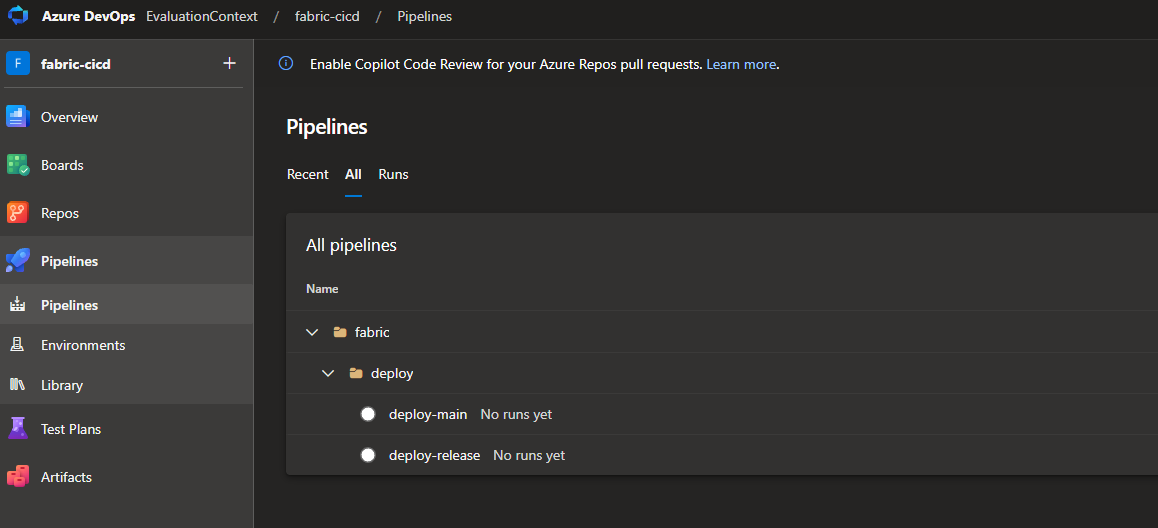

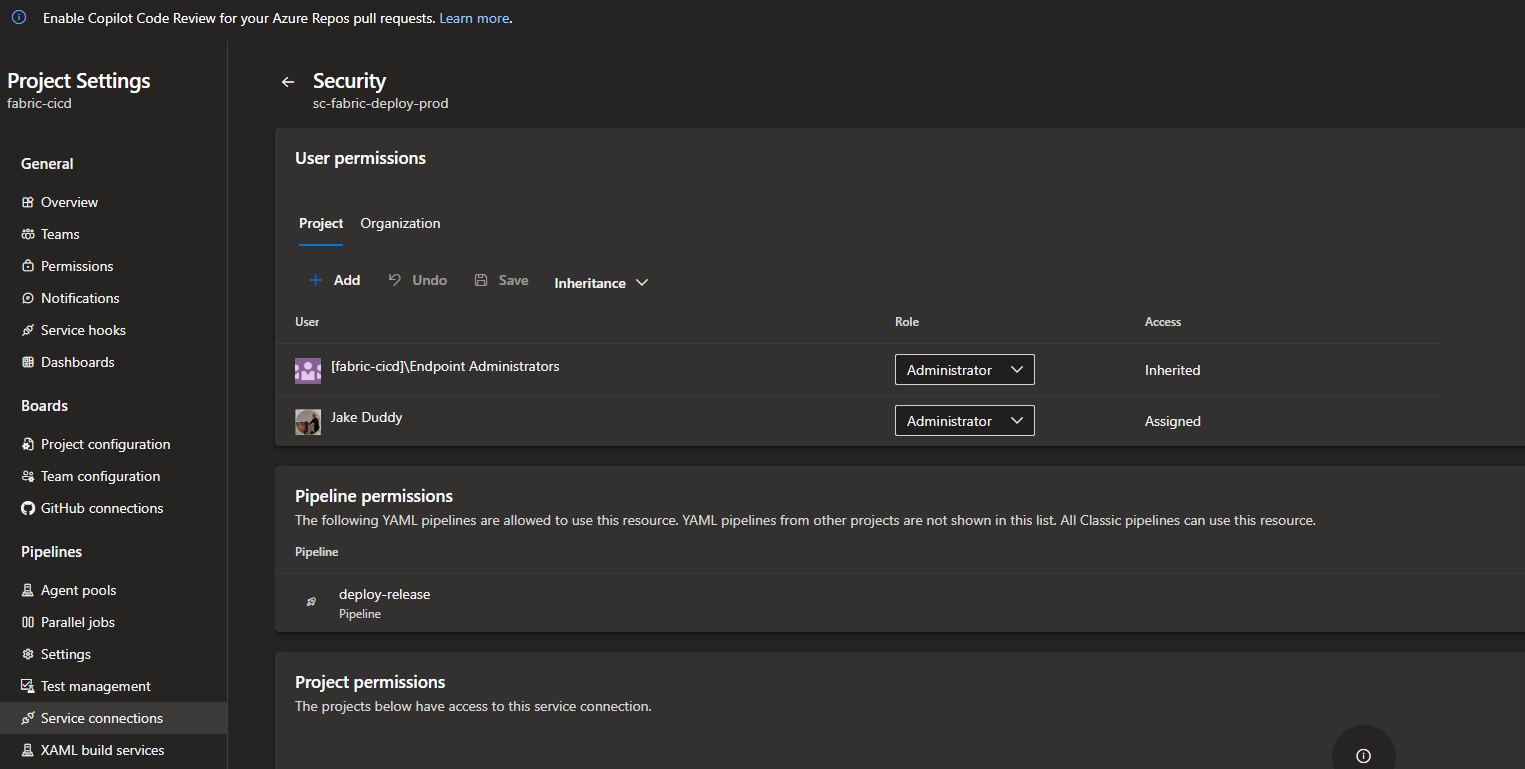

Registering the two pipelines and authorising them on the service connections

Service Principals¶

Lets start with the service principals: the Entra identities that run the pipelines and deploy the Fabric items.

To help protect against an accidental deploy to production, we will use two identities, one for non-prod and one for prod environments.

SPN	Security group	Service connection	Used by	`dev`	`test`	`prod`
`sp-fabric-deploy-nonprod`	`sg-fabric-deploy-nonprod`	`sc-fabric-deploy-nonprod`	`deploy-main.yml`, and the Test stage of `deploy-release.yml`	Contributor	Contributor
`sp-fabric-deploy-prod`	`sg-fabric-deploy-prod`	`sc-fabric-deploy-prod`	The Prod stage of `deploy-release.yml` only			Contributor

Naming Convention

Names follow <type>-fabric-deploy-<env>, so the app registration sp-fabric-deploy-prod and its service connection sc-fabric-deploy-prod are visibly the same thing in two places, and the environment is always the last token. Each SPN sits in its own security group, sg-fabric-deploy-nonprod and sg-fabric-deploy-prod, because they each need different tenant settings (below).

flowchart LR
    subgraph ADO["Azure DevOps"]
        DM["deploy-main.yml"]
        DR["deploy-release.yml"]
        SCN["sc-fabric-deploy-nonprod"]
        SCP["sc-fabric-deploy-prod"]
    end
    subgraph Entra
        SPN1["sp-fabric-deploy-nonprod"]
        SPN2["sp-fabric-deploy-prod"]
    end
    subgraph Fabric
        D["foo-dev"]
        T["foo-test"]
        P["foo-prod"]
    end
    DM --> SCN
    DR -- "Test stage" --> SCN
    DR -- "Prod stage, after approval" --> SCP
    SCN -- "WIF" --> SPN1
    SCP -- "WIF" --> SPN2
    SPN1 -- "Contributor" --> D
    SPN1 -- "Contributor" --> T
    SPN2 -- "Contributor" --> P

Workload Identity Federation¶

The quickest way to get an SPN with a federated credential is to let Azure DevOps create it. One dialog makes the app registration, adds the federated credential with the right issuer and subject, and saves the connection already verified. Do it for non-prod, then repeat for prod.

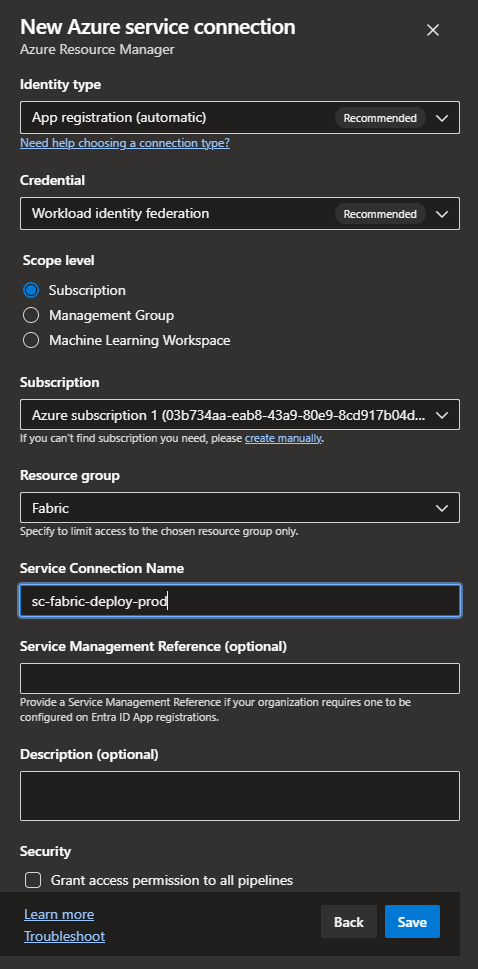

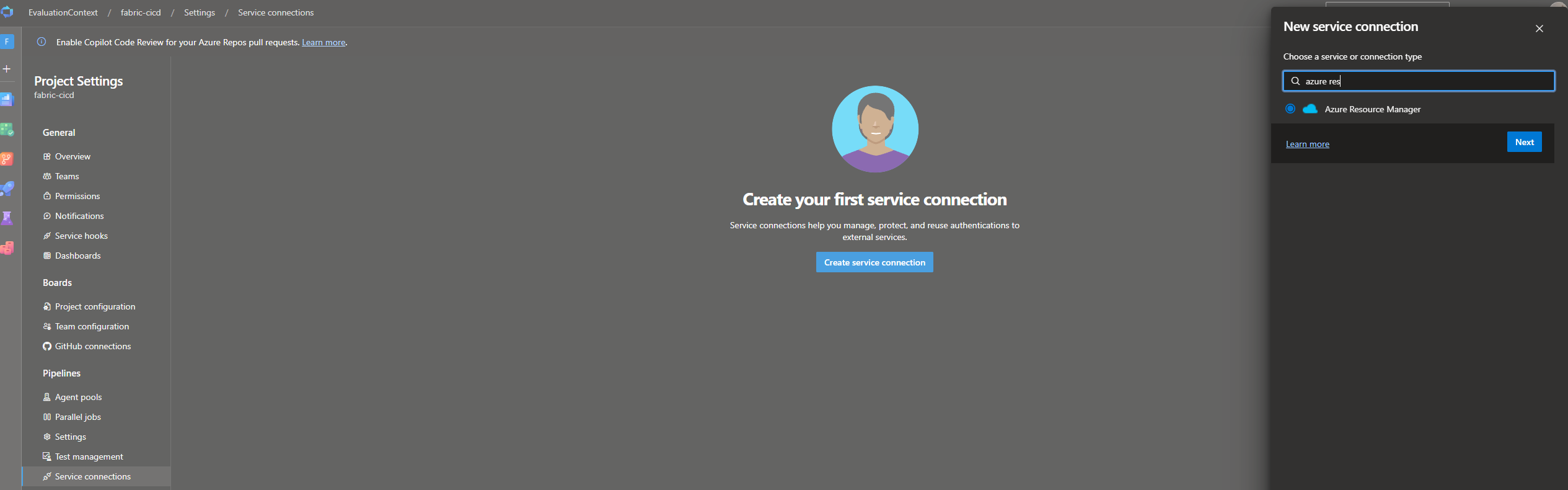

In Azure DevOps, Project settings Pipelines Service connections Create service connection Azure Resource Manager Next.

Identity type App registration (automatic), credential Workload identity federation. Scope level Subscription, and pick one. Service connection name sc-fabric-deploy-nonprod. Leave Grant access permission to all pipelines unticked. Save.

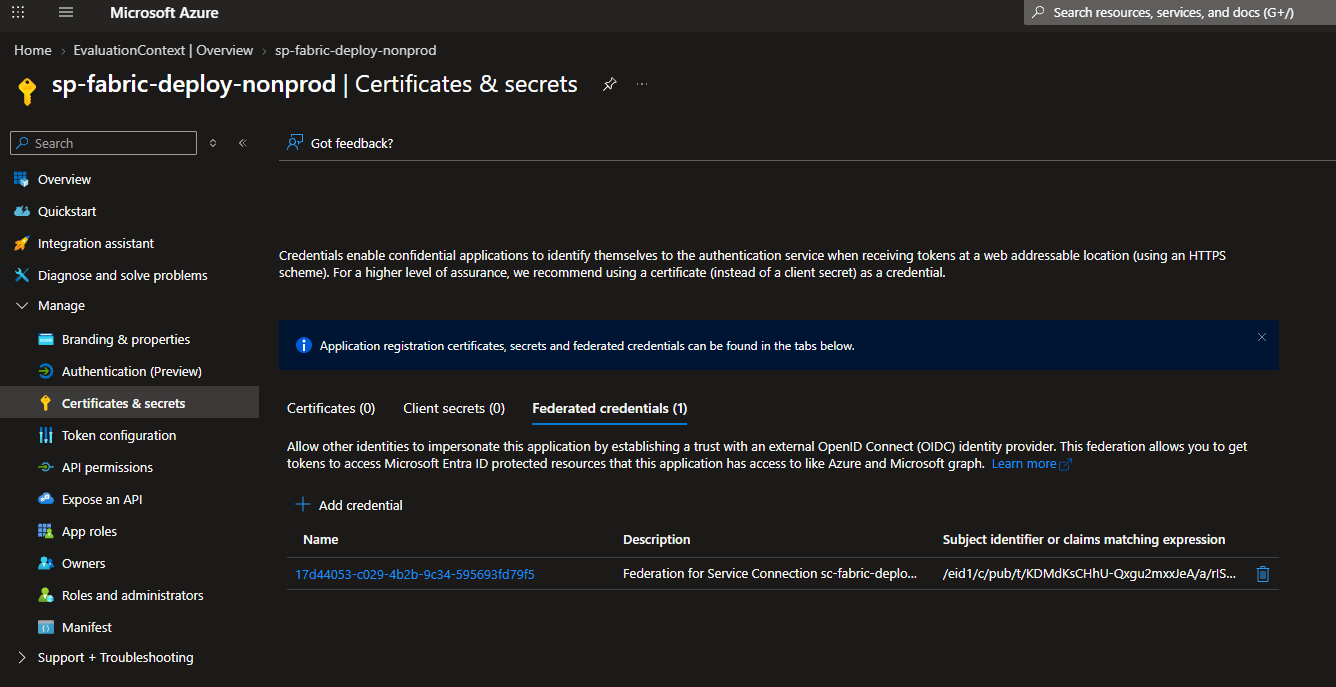

In Entra ID App registrations, find the app Azure DevOps just made. It's named after the organisation and project with a guid on the end (EvaluationContext-fabric-cicd-17d44053-c029-4b2b-9c34-595693fd79f5 in my case). Rename it sp-fabric-deploy-nonprod. The display name is cosmetic: the federated credential's subject identifier is built from the service connection name, so nothing breaks. Open Certificates & secrets Federated credentials and you'll see the trust Azure DevOps wrote. There is no client secret, and there never will be.

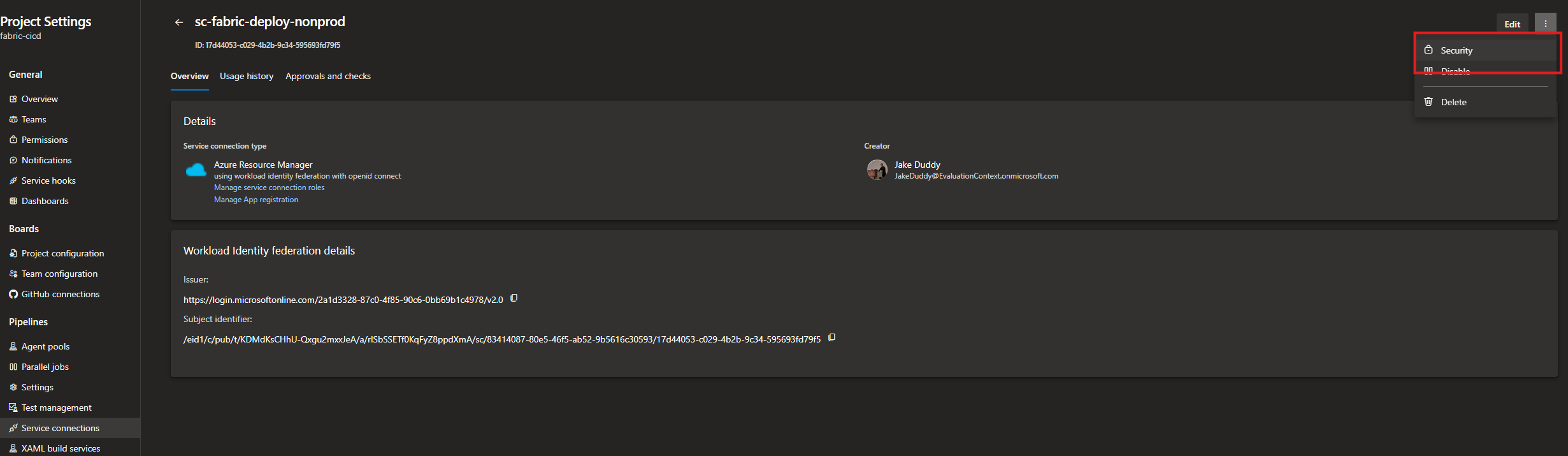

Service connection Contributor role

Azure DevOps also gave the new SPN Contributor on the scope, because that's what an Azure Resource Manager connection is for. Fabric doesn't need it. Remove the role assignment, or pick an empty resource group rather than the subscription as the scope when creating the connection.

With that in place a pipeline can authenticate without a secret: AzureCLI@2 with the service connection and addSpnToEnvironment: true, which puts the SPN's client id, the federated token and the tenant id into the step's environment, and fab auth login consumes them. No secret is read from anywhere, because there isn't one.

fab-setup-steps.yml (login step)

- task: AzureCLI@2
  displayName: fab auth login (workload identity)
  inputs:
    azureSubscription: ${{ parameters.serviceConnection }}
    scriptType: bash
    scriptLocation: inlineScript
    addSpnToEnvironment: true   # exposes servicePrincipalId, idToken, tenantId
    inlineScript: |
      set -euo pipefail
      fab auth login \
        -u "$servicePrincipalId" \
        --federated-token "$idToken" \
        --tenant "$tenantId"
      fab auth status

Security Groups¶

While we're in Entra, create the three security groups. Two hold an SPN each and scope its tenant settings; the third holds people, and is the approval gate on prod.

Group	Members	Used for
`sg-fabric-deploy-nonprod`	`sp-fabric-deploy-nonprod`	Tenant settings for the non-prod SPN
`sg-fabric-deploy-prod`	`sp-fabric-deploy-prod`	Tenant settings for the prod SPN
`sg-fabric-approve-prod`	The people allowed to put a release into production	The approval check on the `fabric-prod` environment

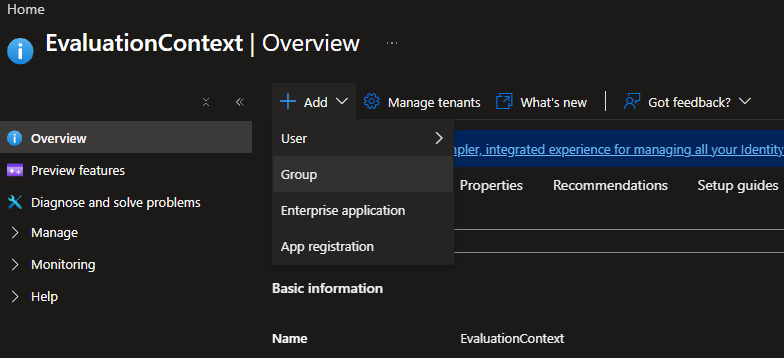

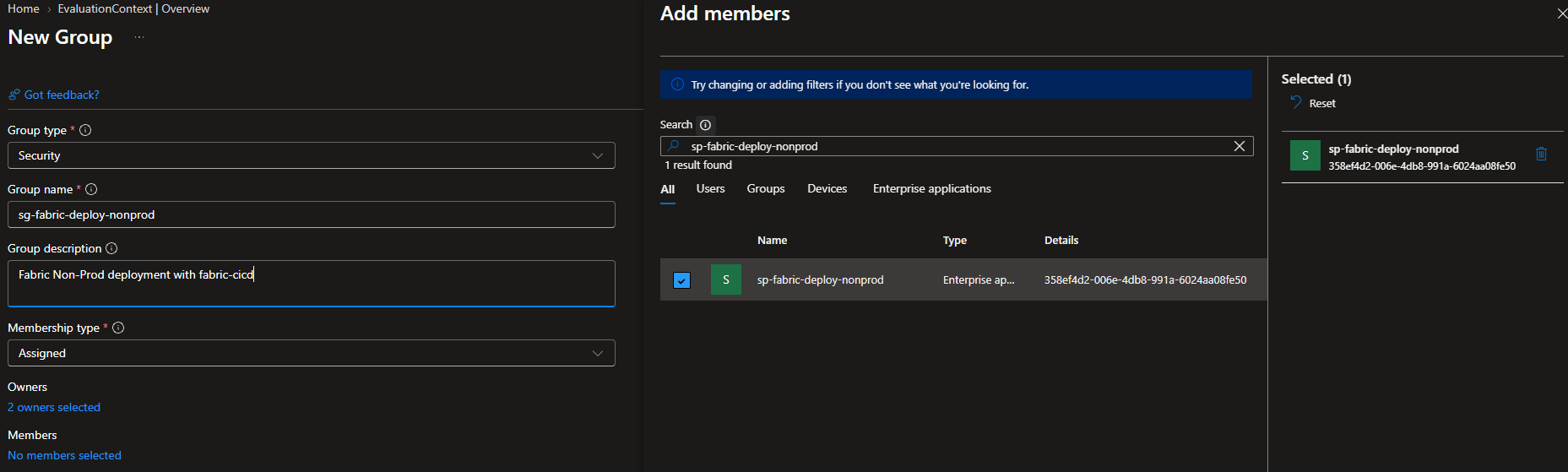

In Entra ID Add Group.

Group type Security, the group name, an owner, and the members: the matching SPN for the two deploy groups, the release approvers for the third. Create.

Tenant Settings¶

Following least privilege, tenant settings should be scoped to security groups, never the whole tenant. The two SPNs need different sets. Prod only ever publishes into a workspace that already exists, so it gets the API setting and nothing else. Non-prod also creates feature workspaces and connects them to git, so it gets the other two.

Tenant setting	`sg-fabric-deploy-nonprod`	`sg-fabric-deploy-prod`
Service principals can use Fabric APIs
Service principals can create workspaces, connections, and deployment pipelines
Users can synchronize workspace items with their Git repositories

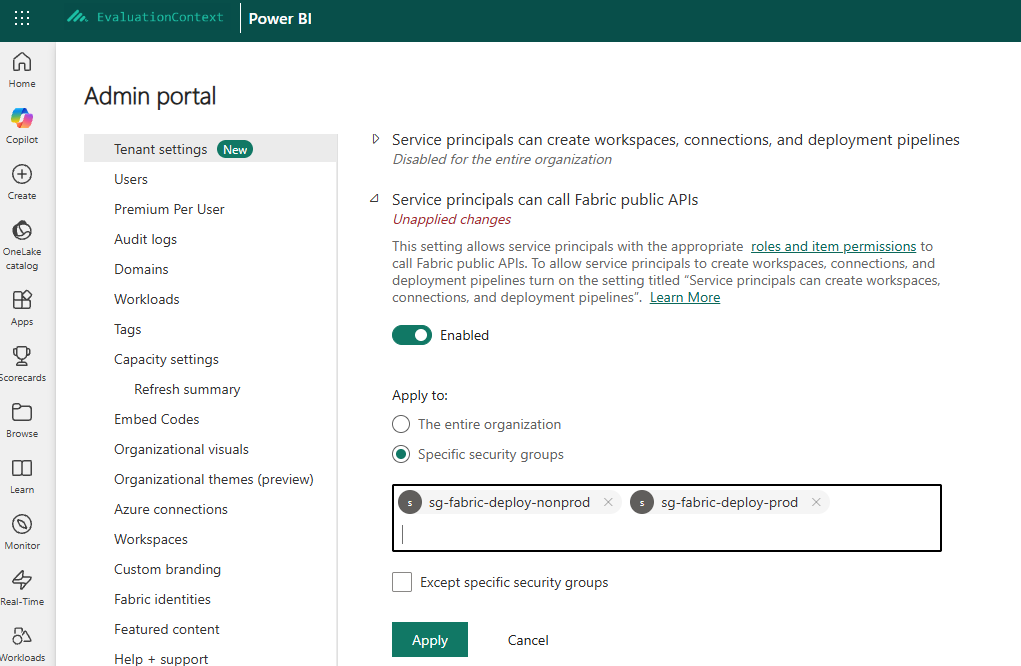

Apply them from Tenant settings in the Fabric admin portal.

Fabric¶

Workspaces¶

Now we can create the workspaces for the three environments, on a capacity, under exactly the names config.yml will use.

Environment	Workspace	Contents
Dev	`foo-dev`	The five items, because that's where they were committed from
Test	`foo-test`	Empty
Prod	`foo-prod`	Empty

Git Integration

None of them are connected via git integration. The pipeline is the only thing that publishes them.

Permissions¶

The SPNs need the Contributor role on the workspaces to deploy into them.

Workspace	`sp-fabric-deploy-nonprod`	`sp-fabric-deploy-prod`
`foo-dev`	Contributor
`foo-test`	Contributor
`foo-prod`		Contributor

Connections¶

Connections are not in any item definition and never travel with a deploy. A connection has two identities attached: the one that owns it and the one it authenticates with. For authentication my order of preference is:

A workspace identity, where the item type supports it. It's owned by the workspace, not by a person. Give user access as needed.
An SPN-owned connection, created by an SPN so it isn't tied to anyone's account. Give user access as needed.
A service account, only where neither of the above is possible.
A personal account, only where none of the above is possible. It ties the connection to a person, and when they leave the organisation the connection goes with them.

Whichever you choose, the deploying SPN needs at least User access to the connection: either it created the connection, or the connection was shared with it before the deploy. Otherwise the pipeline item that references it fails to publish.

Deployment Configuration¶

With a lot of the plumbing set up we can finally look at the contents of the repo.

Repo Init¶

Create an empty repo in the Azure DevOps project. The first commit is the five items under fabric/foo/, and there are two ways to get them there. Connect an existing workspace to main with Git folder fabric/foo, commit, and disconnect again; dev is never git-connected once the pipeline owns it. Or call Bulk Export on the workspace, unzip into fabric/foo/, git init, commit and push, and nothing ever gets connected. Either way the folder is named after the workspace, and that pairing is deliberate. A repo can hold several workspace folders, each with its own items and config.

Repository Structure

├── 📁 fabric
│    └── 📁 foo
│         ├── 📁 Sales.Lakehouse
│         ├── 📁 Load Sales.DataPipeline
│         ├── 📁 Load Sales.Notebook
│         ├── 📁 Sales.SemanticModel
│         └── 📁 Sales.Report
└── 📄 .gitignore

`config.yml`¶

We can start by adding the config.yml file to the workspace folder. This file defines the deployment configuration like what workspace maps to which environment (i.e. dev foo-dev) (by name or id), the relative path to the directory of items to deploy, item types in scope, publish rules per environment and the location of an optional parameter.yml file.

 ├── 📁 fabric
 │    └── 📁 foo
 │         ├── 📁 Sales.Lakehouse
 │         ├── 📁 Load Sales.DataPipeline
 │         ├── 📁 Load Sales.Notebook
 │         ├── 📁 Sales.SemanticModel
 │         ├── 📁 Sales.Report
+│         └── 📄 config.yml
 └── 📄 .gitignore

fabric/foo/config.yml

core:
  workspace:
    dev: foo-dev
    test: foo-test
    prod: foo-prod

  repository_directory: "."

  item_types_in_scope:
    - Lakehouse
    - Notebook
    - DataPipeline
    - SemanticModel
    - Report

  parameter: "parameter.yml"

publish:
  skip:
    dev: false     # merge to main deploys dev
    test: false    # release/* deploys test before prod
    prod: false

unpublish:
  skip:
    dev: false     # dev mirrors main: orphaned items are removed
    test: false
    prod: false    # prod deletes on rollback too

`parameter.yml`¶

Now we can add the parameter.yml file to the workspace folder. This file will hold any environment-specific parameterization rules that will update item definitions during deployment.

 ├── 📁 fabric
 │    └── 📁 foo
 │         ├── 📁 Sales.Lakehouse
 │         ├── 📁 Load Sales.DataPipeline
 │         ├── 📁 Load Sales.Notebook
 │         ├── 📁 Sales.SemanticModel
 │         ├── 📁 Sales.Report
 │         ├── 📄 config.yml
+│         └── 📄 parameter.yml
 └── 📄 .gitignore

We've already hit our first auto-binding gap. The semantic model links to the Lakehouse's SQL endpoint, which doesn't support auto-binding. With these two rules a deploy binds the semantic model to the target environment's lakehouse.

fabric/foo/parameter.yml

find_replace:

  - find_value: 'Sql\.Database\("([^"]+)",'
    is_regex: "true"
    replace_value:
      _ALL_: "$items.Lakehouse.Sales.$sqlendpoint"
    item_type: "SemanticModel"
    item_name: "Sales"
    file_path: "/Sales.SemanticModel/definition/expressions.tmdl"

  - find_value: 'Sql\.Database\("[^"]+",\s*"([0-9a-fA-F-]{36})"\)'
    is_regex: "true"
    replace_value:
      _ALL_: "$items.Lakehouse.Sales.$sqlendpointid"
    item_type: "SemanticModel"
    item_name: "Sales"
    file_path: "/Sales.SemanticModel/definition/expressions.tmdl"

Pipelines¶

Environments and Approvals¶

Now we can set up our Azure DevOps environments. We navigate to Pipelines Environments to begin.

Select Create environment, name it, and repeat until there are three: fabric-dev, fabric-test and fabric-prod, with no resources. On fabric-prod, Approvals and checks Approvals, add sg-fabric-approve-prod as the approver, and add an Exclusive lock so two releases can't deploy to prod at once. Dev and test get nothing.

That approval is the only human step in the flow. This means after creating a release/* branch, the deploy-release.yml pipeline will run, deploying to Test, but it will pause for the manual approval from sg-fabric-approve-prod before deploying to the fabric-prod environment.

Two Pipelines¶

We will have two pipelines: deploy-main.yml for deploying changes to the main branch (dev) and deploy-release.yml for deploying release branches (test and prod). deploy-main.yml triggers when changes in fabric/ are detected on main. deploy-release.yml triggers on any branch matching release/*.

Each of these pipelines references the two shared templates: fab-setup-steps.yml (install fab, the encryption fallback, the federated login) and fab-deploy-steps.yml (fab deploy). variables.yml holds the two service connection names and nothing else.

+├── 📁 .azure-pipelines
+│    ├── 📁 templates
+│    │    ├── 📄 fab-setup-steps.yml
+│    │    └── 📄 fab-deploy-steps.yml
+│    ├── 📄 variables.yml
+│    ├── 📄 deploy-main.yml
+│    └── 📄 deploy-release.yml
 ├── 📁 fabric
 │    └── 📁 foo
 │         ├── 📁 Sales.Lakehouse
 │         ├── 📁 Load Sales.DataPipeline
 │         ├── 📁 Load Sales.Notebook
 │         ├── 📁 Sales.SemanticModel
 │         ├── 📁 Sales.Report
 │         ├── 📄 config.yml
 │         └── 📄 parameter.yml
 └── 📄 .gitignore

variables.ymldeploy-main.ymldeploy-release.ymltemplates/fab-deploy-steps.ymltemplates/fab-setup-steps.yml

variables:
  # deploy-main, and the Test stage of deploy-release
  serviceConnectionDev: sc-fabric-deploy-nonprod
   # the Prod stage of deploy-release only
  serviceConnectionProd: sc-fabric-deploy-prod

trigger:
  # Two merges a minute apart must not publish dev concurrently. The second
  # waits and runs once for everything queued behind the first.
  batch: true
  branches:
    include:
      - main
  paths:
    include:
      - fabric/foo/

pr: none

variables:
  - template: variables.yml

stages:
  - stage: Dev
    displayName: Deploy to Dev
    jobs:
      - deployment: DeployDev
        displayName: fab deploy (dev)
        pool:
          vmImage: ubuntu-latest
        environment: fabric-dev
        strategy:
          runOnce:
            deploy:
              steps:
                - checkout: self

                - template: templates/fab-setup-steps.yml
                  parameters:
                    serviceConnection: ${{ variables.serviceConnectionDev }}

                - template: templates/fab-deploy-steps.yml
                  parameters:
                    targetEnv: dev

trigger:
  branches:
    include:
      - release/*

pr: none

variables:
  - template: variables.yml

stages:
  # ---------------------------------------------------------------------------
  # TEST: every push to a release branch
  # ---------------------------------------------------------------------------
  - stage: Test
    displayName: Deploy to Test
    jobs:
      - deployment: DeployTest
        displayName: fab deploy (test)
        pool:
          vmImage: ubuntu-latest
        environment: fabric-test
        strategy:
          runOnce:
            deploy:
              steps:
                - checkout: self

                - template: templates/fab-setup-steps.yml
                  parameters:
                    serviceConnection: ${{ variables.serviceConnectionDev }}

                - template: templates/fab-deploy-steps.yml
                  parameters:
                    targetEnv: test

  # ---------------------------------------------------------------------------
  # PROD: approve, deploy
  # ---------------------------------------------------------------------------
  - stage: Prod
    displayName: Deploy to Prod
    dependsOn: Test
    jobs:
      - deployment: DeployProd
        displayName: fab deploy (prod)
        pool:
          vmImage: ubuntu-latest
        environment: fabric-prod   # the manual-approval check lives here
        strategy:
          runOnce:
            deploy:
              steps:
                - checkout: self

                - template: templates/fab-setup-steps.yml
                  parameters:
                    serviceConnection: ${{ variables.serviceConnectionProd }}

                - template: templates/fab-deploy-steps.yml
                  parameters:
                    targetEnv: prod

parameters:
  - name: targetEnv
    displayName: Target environment key in config.yml (dev / test / prod)
    type: string

  - name: configFile
    displayName: Path to the fabric-cicd config.yml
    type: string
    default: fabric/foo/config.yml

steps:
  - script: |
      set -euo pipefail
      config="${{ parameters.configFile }}"
      env="${{ parameters.targetEnv }}"
      if [ ! -f "$config" ]; then
        echo "##vso[task.logissue type=error]Config file '$config' does not exist."
        exit 1
      fi

      mkdir -p "$(Build.ArtifactStagingDirectory)/deploy-log"
      log="$(Build.ArtifactStagingDirectory)/deploy-log/${env}-$(Build.BuildId).log"
      echo "##vso[task.setvariable variable=fabDeployLogWritten]true"

      {
        echo "fab deploy --config $config --target_env $env --force"
        echo "commit:  $(Build.SourceVersion)"
        echo "branch:  $(Build.SourceBranch)"
        echo "run:     $(Build.BuildNumber)"
        echo "=================================================================="
      } | tee "$log"

      # pipefail is on, so a failing deploy still fails the step despite tee.
      # --force: no interactive confirmation on an agent.
      fab deploy --config "$config" --target_env "$env" --force 2>&1 | tee -a "$log"
    displayName: fab deploy (${{ parameters.targetEnv }})

  # Published whenever the deploy step wrote a log, on failure too, which is
  # when it matters.
  - publish: $(Build.ArtifactStagingDirectory)/deploy-log
    artifact: deploy-log-${{ parameters.targetEnv }}
    displayName: Publish deployment log (${{ parameters.targetEnv }})
    condition: eq(variables['fabDeployLogWritten'], 'true')

# Install the Fabric CLI and log in as the SPN. Every job runs these first.
parameters:
  - name: serviceConnection
    displayName: WIF service connection name
    type: string

  - name: pythonVersion
    displayName: Python version for the agent
    type: string
    default: '3.12'

steps:
  - task: UsePythonVersion@0
    displayName: Use Python ${{ parameters.pythonVersion }}
    inputs:
      versionSpec: ${{ parameters.pythonVersion }}

  # Nothing is pinned: every run installs the current ms-fabric-cli, which
  # brings the current fabric-cicd with it. A deploy can therefore change
  # behaviour with no commit behind it, so the versions are echoed into the
  # log and a breakage can be tied to a release. A pin is one line here if
  # that trade-off flips. The series is written against fabric-cicd 1.3.0.
  - script: |
      set -euo pipefail
      python -m pip install --upgrade pip
      python -m pip install ms-fabric-cli
      echo "== versions =="
      python -m pip show ms-fabric-cli fabric-cicd | grep -E '^(Name|Version):'
    displayName: Install Fabric CLI (current)

  # Hosted agents have no keyring, so fab can't encrypt its token cache and
  # will otherwise fail to persist the login between steps.
  - script: |
      set -euo pipefail
      fab config set encryption_fallback_enabled true
    displayName: fab config (hosted-agent token cache)

  - task: AzureCLI@2
    displayName: fab auth login (workload identity)
    inputs:
      azureSubscription: ${{ parameters.serviceConnection }}
      scriptType: bash
      scriptLocation: inlineScript
      addSpnToEnvironment: true   # exposes servicePrincipalId / idToken / tenantId
      inlineScript: |
        set -euo pipefail
        fab auth login \
          -u "$servicePrincipalId" \
          --federated-token "$idToken" \
          --tenant "$tenantId"
        fab auth status

Template Repo

In a real scenario, you would have a repo for the templates (fab-deploy-steps.yml and fab-setup-steps.yml), where you would pin a version of Fabric-CLI, and tag the template repository. This allows you to set up thin pipeline definitions in your Fabric Items repos that would reference the tagged version of the templates rather than the latest commit. This allows you to centralize reused code and control when updates to the templates are adopted, rather than automatically getting the latest changes.

Once the pipelines are committed to Azure DevOps, they will not run until they are registered. Go to Pipelines Create pipeline Azure Repos Git select the repo Existing Azure Pipelines YAML file, once each for deploy-main.yml and deploy-release.yml, Save and name them deploy-main and deploy-release.

Now that the pipelines exist, go back to each service connection and select Security.

Select Pipeline permissions, and authorise them: deploy-main and deploy-release on sc-fabric-deploy-nonprod, deploy-release alone on sc-fabric-deploy-prod. Nothing else can use them, and the first run of each pipeline will prompt for exactly this if you forget.

Testing the Deployment¶

foo-dev already holds the five items, because that's where they were committed from, so a merge to main proves the pipeline rather than the deploy: deploy-main runs, logs in as sp-fabric-deploy-nonprod, and republishes five items over themselves. Green, and nothing visibly changes.

The real test is the release pipeline, into an empty workspace. Cut release/2026.10 from main. deploy-release is triggered and deploys test, and five items appear in an empty foo-test.

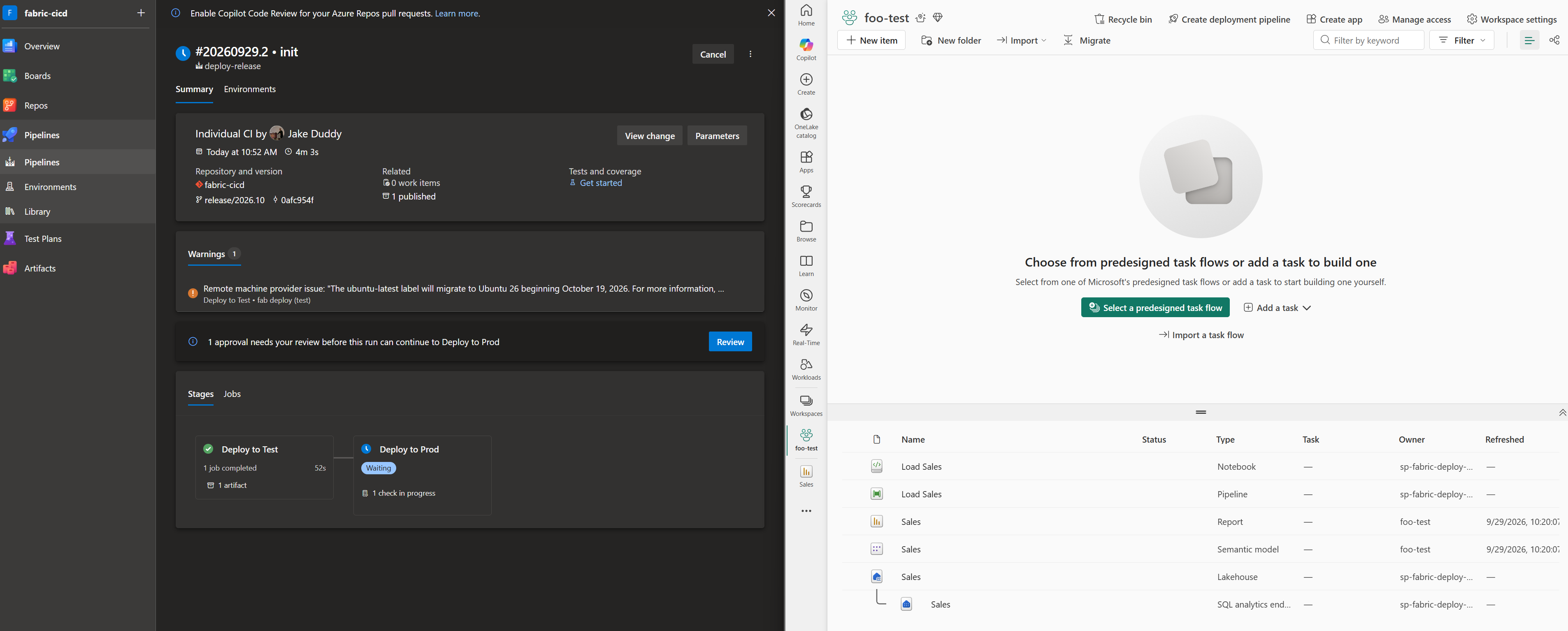

The run stops at the approval on fabric-prod; only a member of sg-fabric-approve-prod can let it through. Approve, and foo-prod fills the same way.

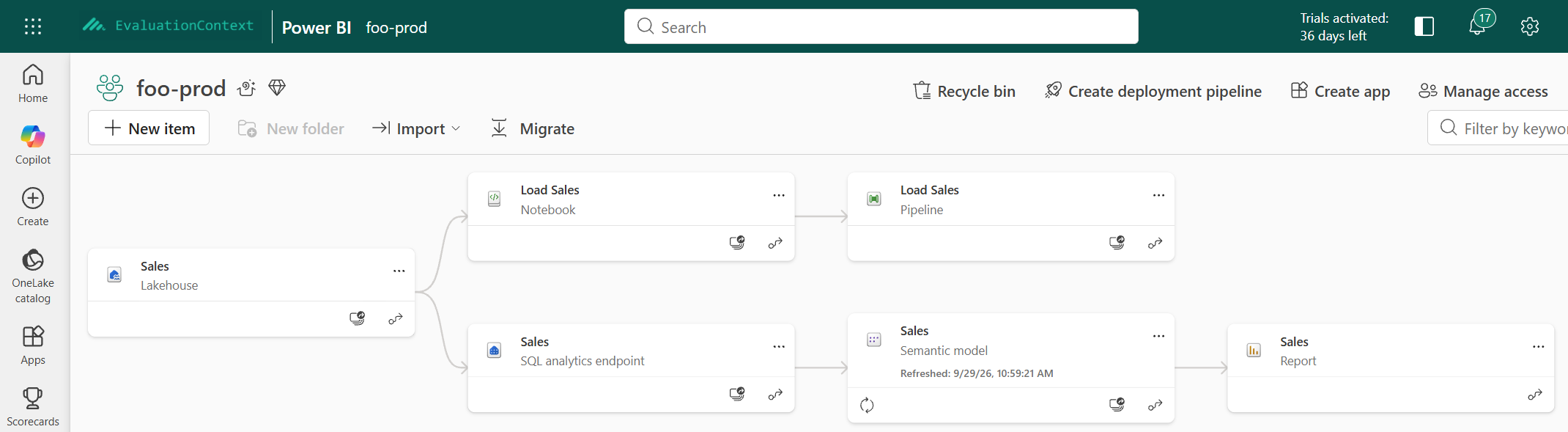

The workspace lineage view confirms that the items in foo-prod are bound to each other, not to dev.

Conclusion¶

Two service principals with no secrets, three workspaces, a repo, two pipelines and one approval, and nobody clicked anything to get code into production. Up to the point where the report opens, the overview's promise holds. What it doesn't say is that "deployed" and "works" are different questions. The next post follows a feature from a branch to prod.
